| Overview of the nodes |
Back to the index Back to the top of index |
Goal: |

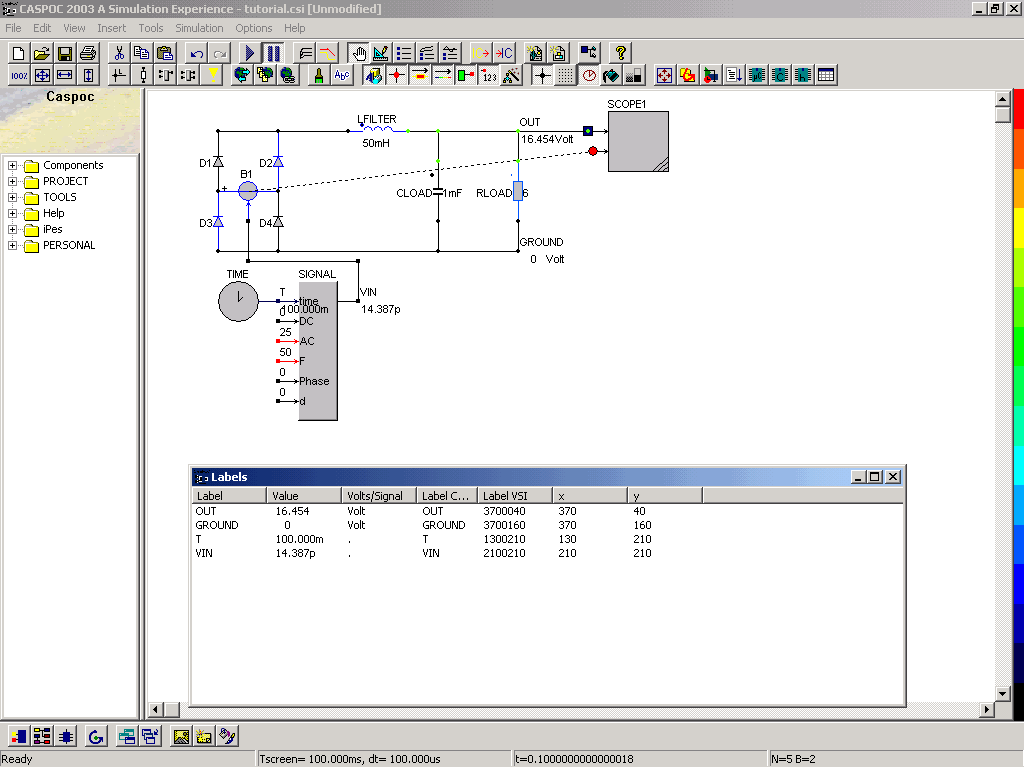

Opens a window with an overview of the nodes in the schematic. |
| What to do: | Select View/Label values to open the window with the overview. |
| Result: | Overview of all values of all nodes in the schematic. |
Note: |
Labels inside library blocks are not displayed in the overview. |
 |
