| Viewing currents |
Back to the index Back to the top of index |
Goal: |
Show the current through a circuit component in a scope. |

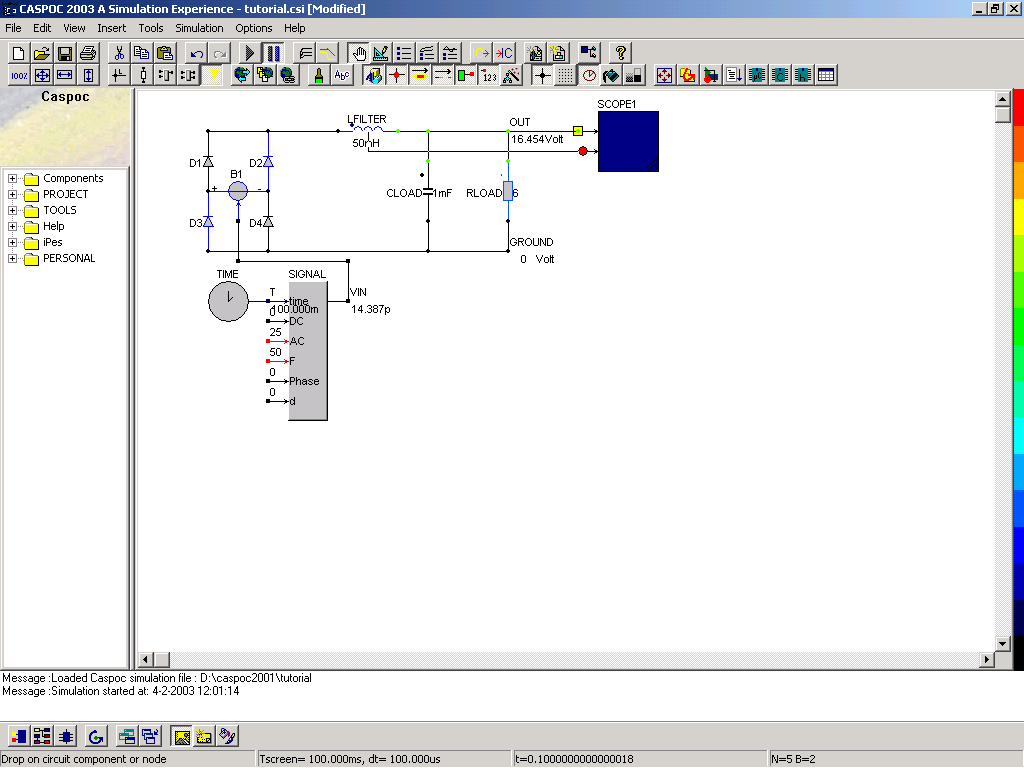

| What to do: | Place a block SCOPE in the schematic, but such that the input is not connected to a node. (The input is shown as a circle.) >Click the left mouse button over the circle, hold down the left mouse button and move to a circuit component. On the circuit component, release the left mouse button. A dashed line is drawn from the scope input to the circuit component. |
| Result: | A dashed line is drawn from the input of the scope to the component to indicate that the current through the component will be displayed in the scope. |
Note: |
Another way is to double or right click the block SCOPE to edit the properties. Select Select the radio button "Current through", and type the name of the component. Select [CLOSE] |
 |
