Goal: |
Define the length of one screen frame for viewing simulation results. |

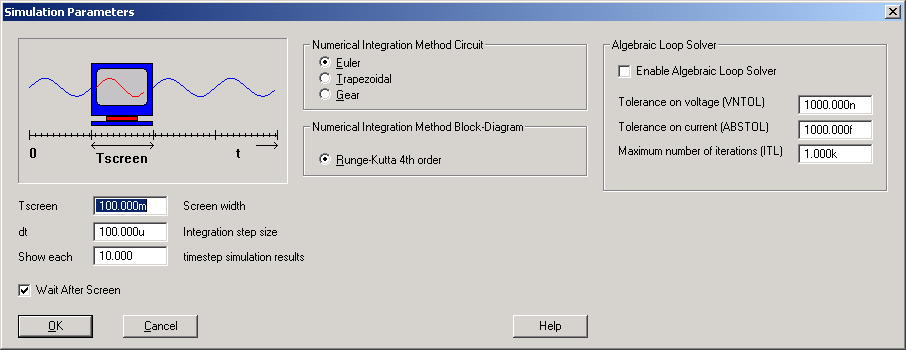

| What to do: | To define the length of one screen frame, select the dialog box Simulation/Simulation Parameters. Each Tscreen seconds of simulation time, the screen is refreshed. |
| Example: | A SMPS with a time response of 1ms is switching at 20kHz. To see 5 periods, set Tscreen to 250µs. Continue the simulation in CASPOC by pressing [Enter] or selecting Simulation/Continue Simulation, causing the simulator to simulate the next Tscreen seconds.A 3-phase rectifier operating at 50Hz. Tperiod equals 20ms. To see 5 periods, set Tscreen to 100ms. Continue the simulation in CASPOC by pressing [Enter] or selecting Simulation/Continue Simulation, causing the simulator to simulate the next Tscreen seconds. |
| Result: | The results during simulation are shown in frames of Tscreen seconds. |
 |
