Goal:	Set the simulation parameters; Screen length, Integration time step, Wait after screen.

What to do:

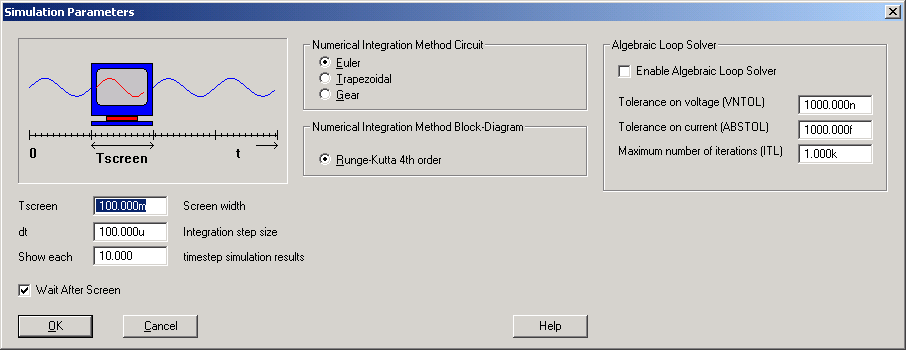

Select: Simulation/Simulation Parameters. Define the simulation parameters in the dialog box Simulation Parameters:TscreenSee paragraph Screen LengthDtSee paragraph Time StepWait After ScreenIf marked, the simulation stops after Tscreen seconds. Selecting Simulation/Continue or pressing [ENTER], will continue the simulation for the next Tscreen seconds.If not marked, the scope contents will be removed and the next Tscreen seconds are simulated.

Result:

Define the necessary parameters to run the simulations.
