| XY view |
Back to the index Back to the top of index |
Goal: |
View the simulation results in a XY plane. |

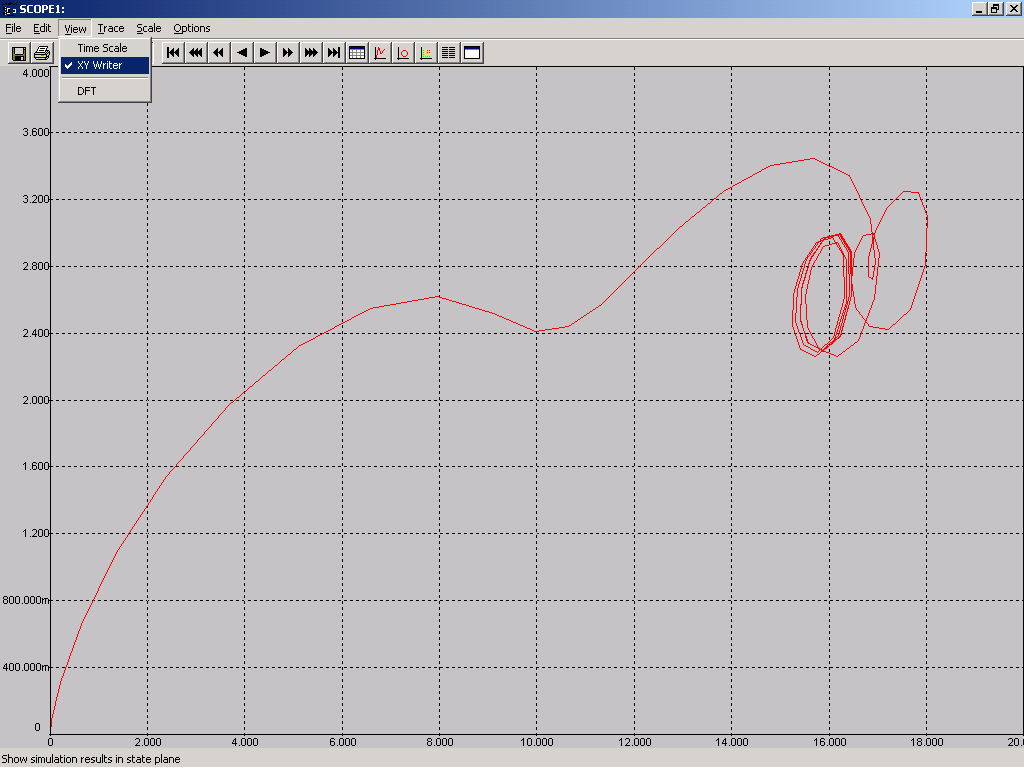

| What to do: | Select View/XY Writer. At the inputs of the block scope rectangles are drawn, indicating which inputs are grouped. The odd input is drawn on the X-axis. The even input is drawn on the Y-axis. |
| Result: | Input (i+1) is displayed as function of input (i), for 1<=i<=number of traces-1. |
Note: |
You can change between displaying in the time domain and the XY View, without re-starting the simulation. |
 |
