Numeric evaluation

Back to the index
Back to the top of index

Goal:	Numeric evaluation of the simulation results.

What to do:

Press one of the arrow keys or click on the simulation results with the right mouse button.

Home	Move to the beginning of the simulation results
PgUp	Move 100 positions to the left.
Arrow Up	Move 10 positions to the left.
Arrow Left	Move 1 position to the left.
Arrow Right	Move 1 position to the right.
Arrow Down	Move 10 positions to the right.
PgDn	Move 100 positions to the right.
End	Move to the end of the simulation results.

Result:

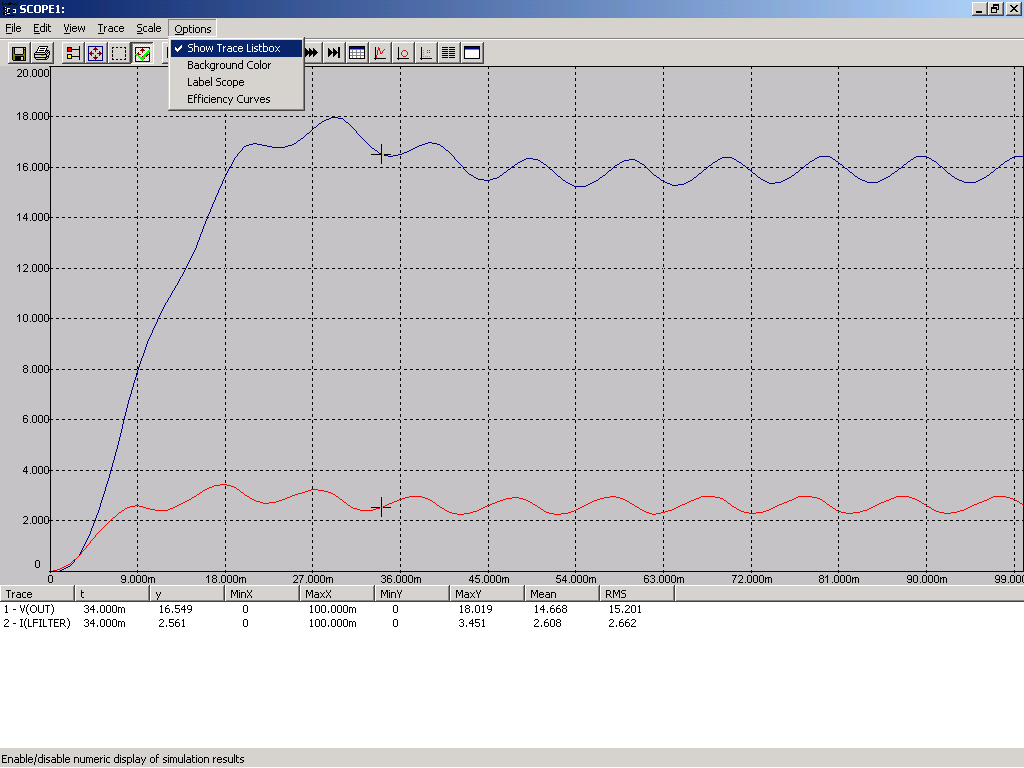

The numerical values of the simulation results are displayed in a list box. A cross indicates the position on the waveforms.

Note:

If the scope window is too small to display all numerical results in the list box, the window flashes each step. Enlarge the window.
If two waveforms have equal points, the cross is not displayed.
