Discrete Fourier Transform

Back to the index Back to the top of index

Goal:	Perform a Discrete Fourier Transform.

What to do:	DFT Parameters.Select Scale/DFT parameters to edit the number of harmonics. The basic harmonic is 1/ Tscreen (Hz)Fourier TransformSelect View/DFT to perform and display the Fourier Transform.

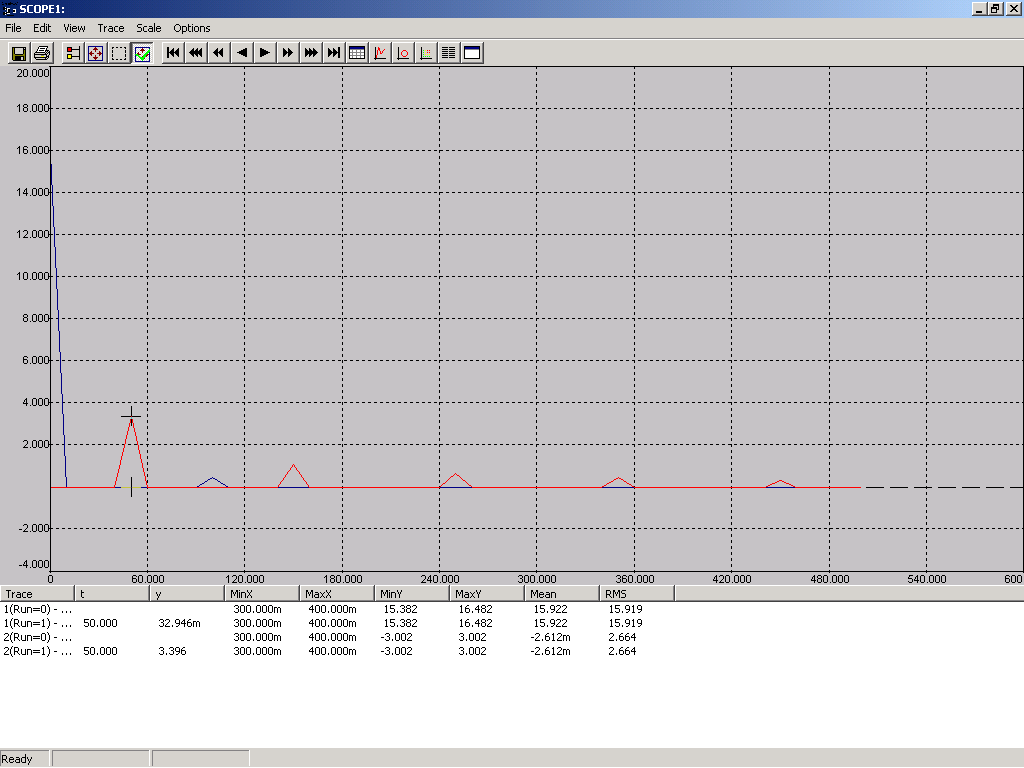

Result:	Simulation result from input number 1 is transformed in the frequency domain.
Note:	Since a Discrete Fourier Transform (DFT) and no FFT is performed, there is no approximation of the time domain waveform.Only the time domain waveform of input 1 is transformed.

---
