| Exporting numerical results |
Back to the index Back to the top of index |
Goal: |
Save the numerical evaluation of the simulation results in a text file. |

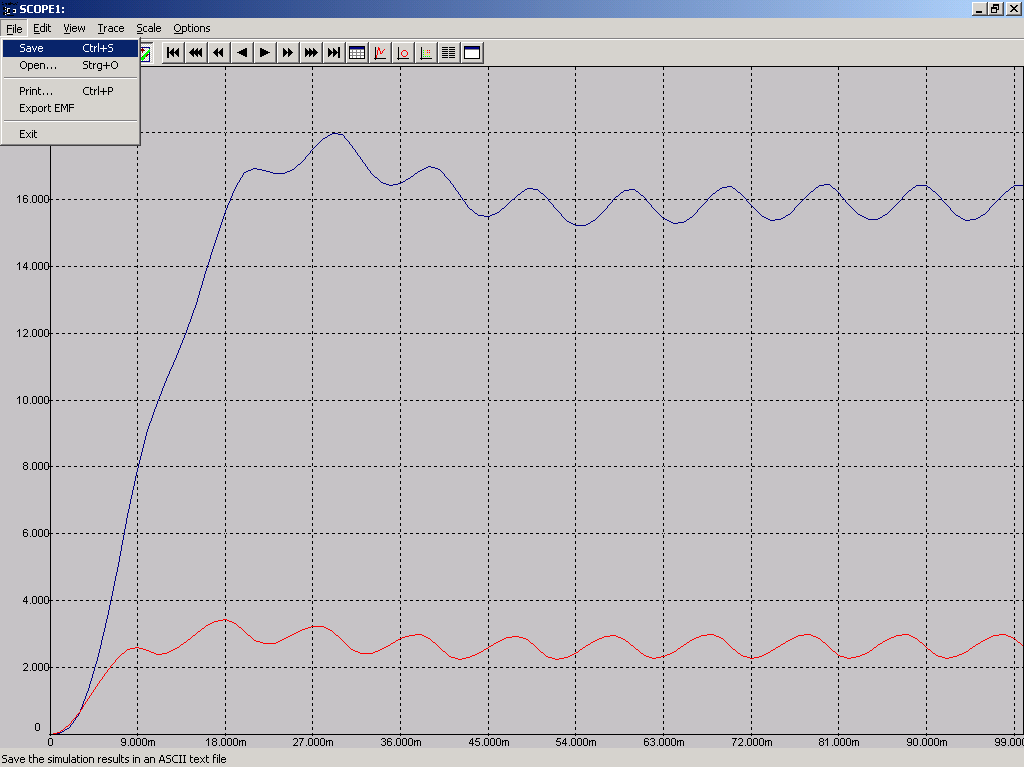

| What to do: | Select File/Save. In the dialog box define the name of the file and select [SAVE]. |
| Result: | The numerical values of the displayed waveforms are saved in an ASCII text file. |
Note: |
The significance of the numbers in the saved file is much higher than the ones displayed in the list box. |
 |
