| Autoscaling |
Back to the index Back to the top of index |
Goal: |
Change the scale to fit the simulation results. |

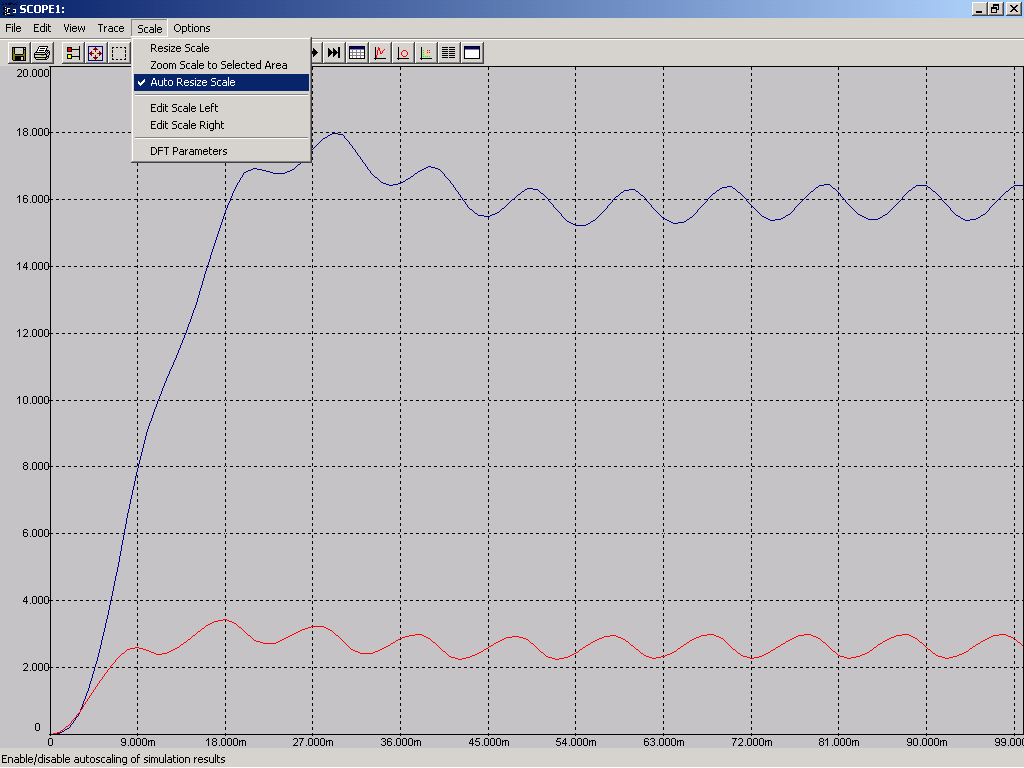

| What to do: | For auto scaling, the menu item Scale/Auto Resize Scale has to be checked. Select the rescale-button to re-scale the scope window. Also resizing the window re-scales the scope window. |
| Result: | The simulation results always fit within the scope window. |
Note: |
At the end of the screen, when t is an integer multiple of Tscreen, the scope window is re-scaled automatically.During the simulation, the simulation results can go beyond the specified scale. Select the rescale-button to auto scale during the simulation.Auto scaling is also performed whenever you continue the simulation, for example, by just pressing the [ENTER] key. |
 |
