| Start the multiple simulation |
Back to the index Back to the top of index |
Goal: |
Start a multiple simulation run. |

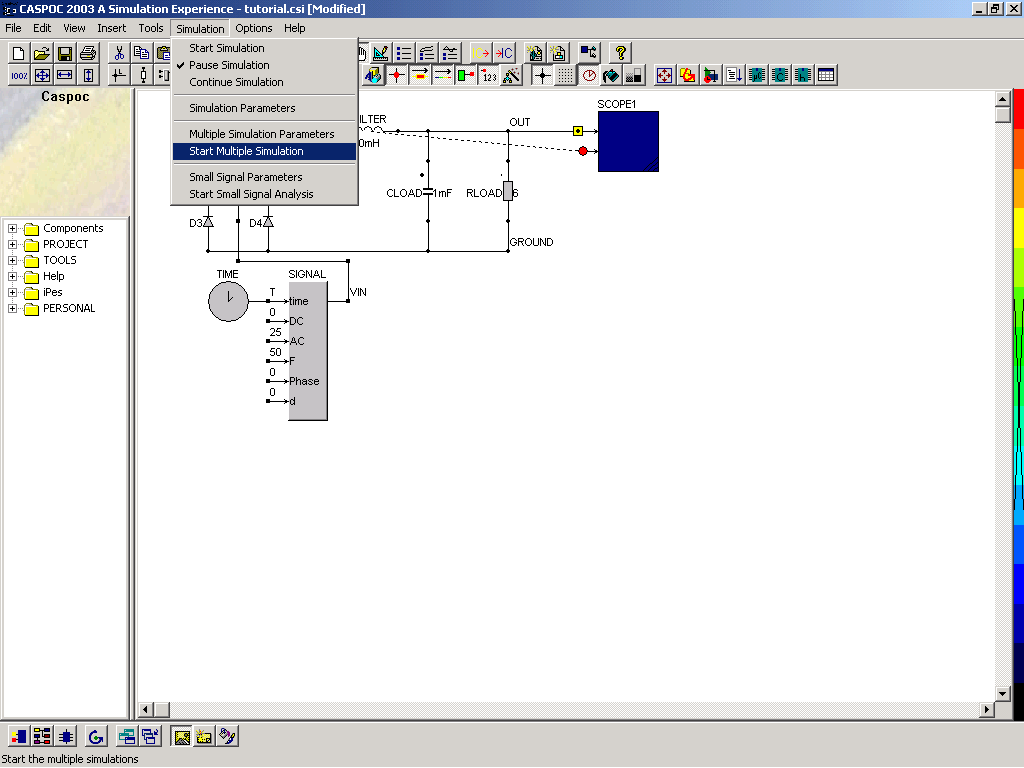

| What to do: | To start the multiple simulation select: |
| Result: | Multiple simulation runs, with results in the scopes. |
Note: |
The block Multisim indicates the number of the multiple simulation. The output equals the number of the multiple simulation. The total number of simulations is defined in the dialog box Multiple Simulation Parameters. If a normal simulation is performed, the output of the block Multisim equals 0. |
 |
