Moving a component

Back to the index Back to the top of index

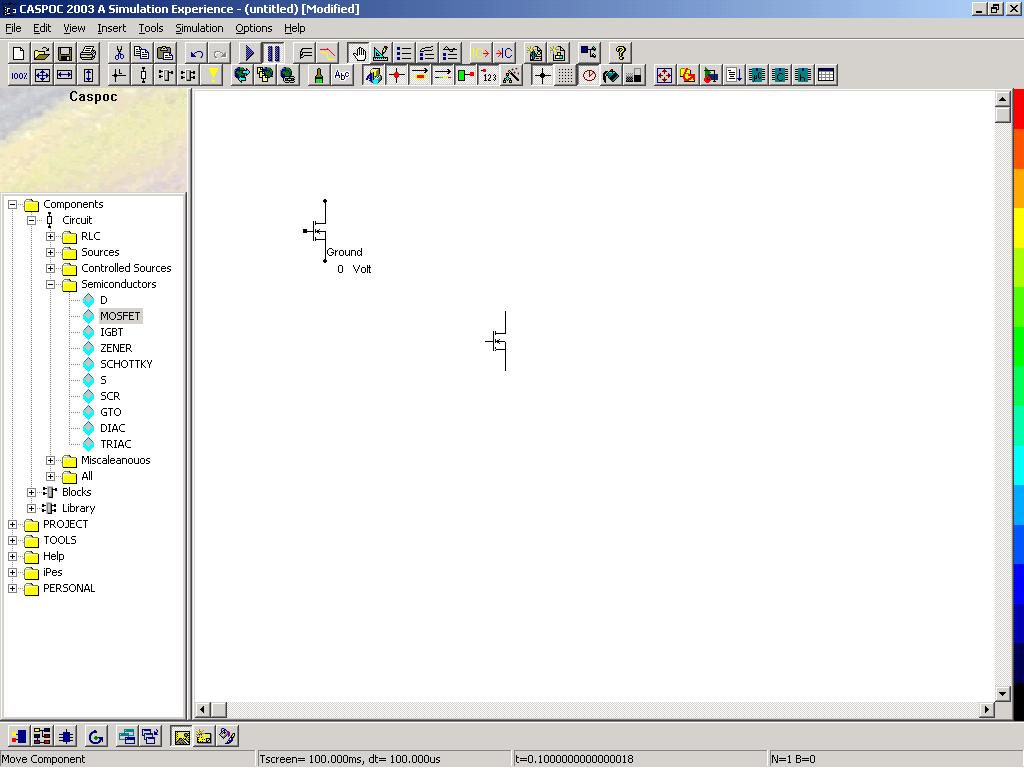

Goal:	Move a component in the schematic.

What to do:	SelectingSelect a component in the schematic by clicking and holding down the left mouse button over the selected component.MovingHold down the left mouse button and drag the selected component to the new place.PlacingRelease the left mouse button to drop the component.
Result:	The component is moved to a new position. Labels of nodes are not moved.
Note:	If the component is the first circuit component, Caspoc asks to insert a label for the Ground node. Select [Yes] to include the default label.

---
