| View the contents of a library block. |
Back to the index Back to the top of index |
Goal: |
Place the contents of a library block on top of the block. |

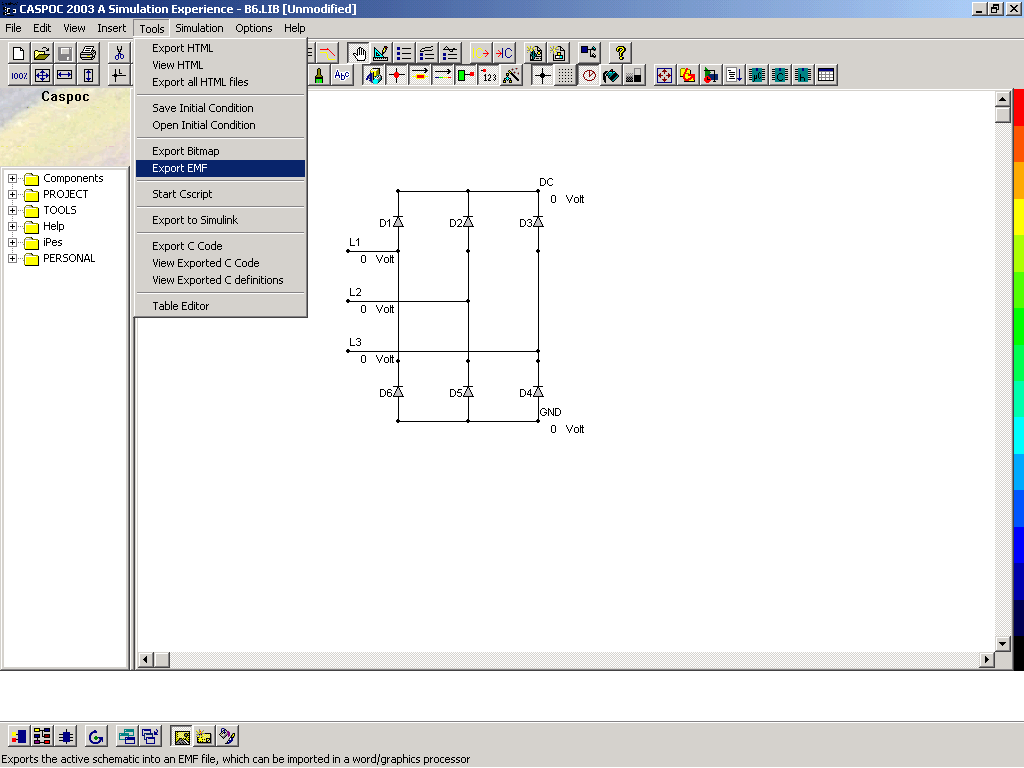

| What to do: | To view the contents of a library block in the block, mark the checkbox [x] EMF in the properties dialog box.Select the [Edit] button to open the library block and select Tools/Export EMF to export the EMF-file. |
| Result: | The contents of the library block are stored in a (*.emf) file, which is displayed on the block. |
Note: |
The (*.emf) file should have the same file and pathname as the (*.lib) library file. |
 |
