Import a library block

 Back to the index
Back to the top of index


Goal:
Import a library block into the schematic.
What to do:

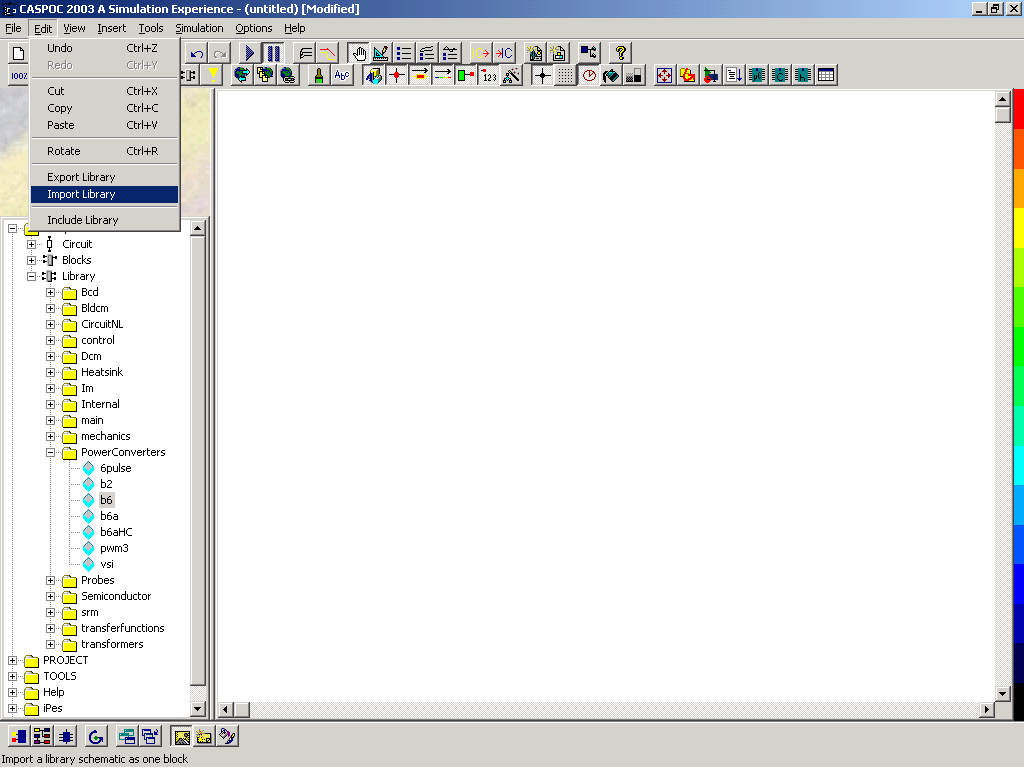

  1. Select Edit/Import library block (*.lib).
  2. Define a new name for the block or use the default name. Select [OK].
  3. Place the library block by clicking the left mouse button. (You can move the library block like the block diagram components).
Result: The library block is imported.

Note:
The labels of the library block are sorted alphabetically. The size of the library block depends on the number of connections.
