| What to do: |

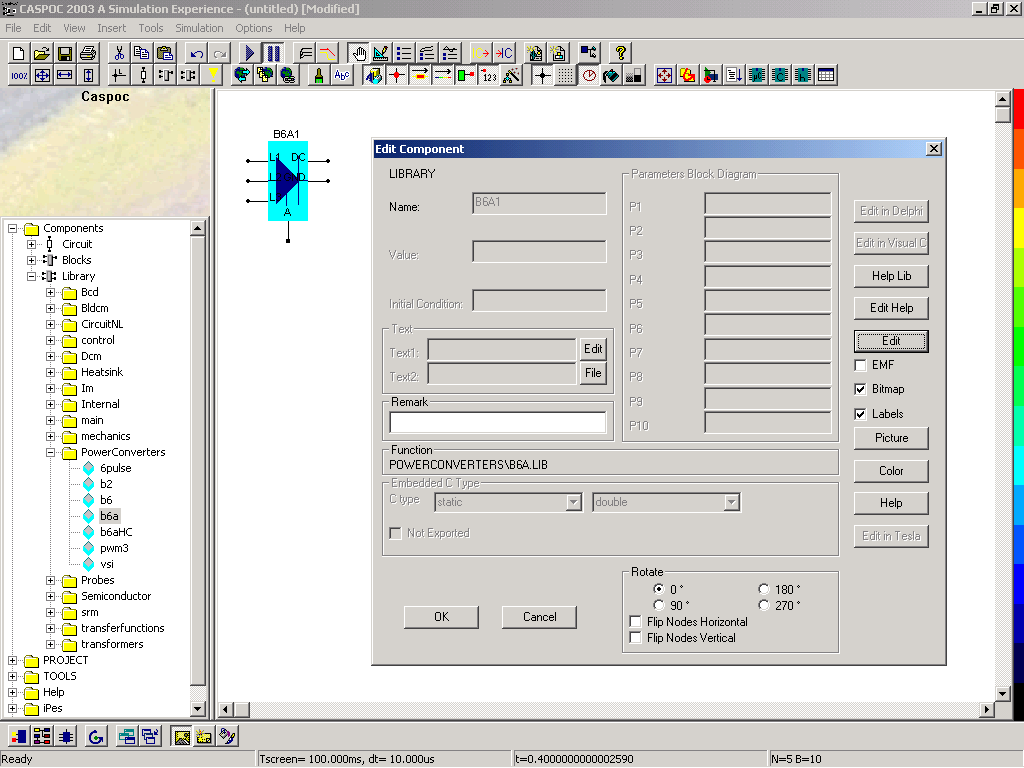

- Selecting the button [Edit] opens the contents of the library file in the schematic editor.
- Check the [] EMF to diplay a (*.EMF)-graphics file. You can export EMF-graphics files using [Tools/Export EMF]. The (*.emf) file should have the same name as the library file.
- Check the [] Bitmap to diplay a (*.bmp) bitmap-graphics file. You can create Bitmaps using the Paint program in Windows. The (*.bmp) file should have the same name as the library file.
- Check the [] Labels to diplay the exported labels inside the library block.
- Select the [Picture] button to edit the bitmap in, for example, Paint.
- Select the [Color] button to select the color of the library block.
|
| Result: |
The library block is edited. |
Note: |
If the library block is edited by selecting the [Edit button], only that library block is re-imported. Always import the library block again, otherwise the changes made in the library block will have no effect. |
