Goal: |
Include one schematic into another schematic. |

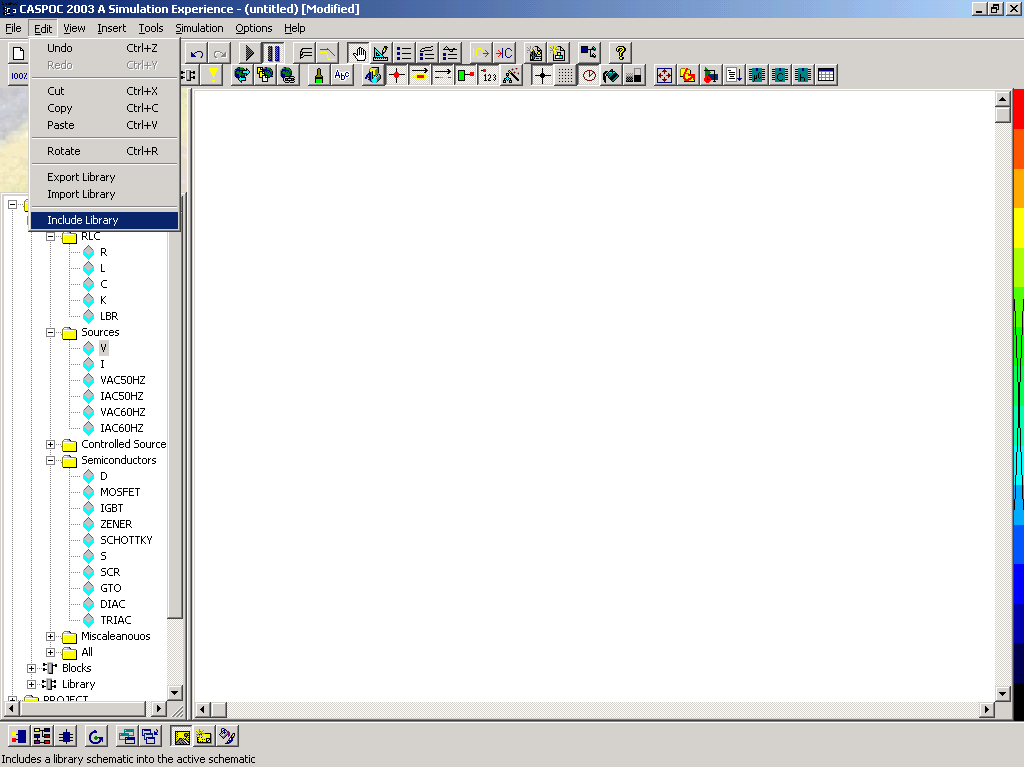

| What to do: | Select: Select [Open] to import. The mouse changes to a cross and can be moved in the schematic editor. Move the mouse to the place in the schematic where the imported schematic has to be placed. Click the left mouse button to place the imported schematic. |
| Result: | The imported schematic is part of the total schematic. |
Note: |
The cross mouse cursor is the top left position of the imported schematic. |
 |
