Exporting schematics to bitmap

Back to the index Back to the top of index

Goal:	Export the schematic into a bitmap graphics file, which can be imported into any text processor or drawing program.

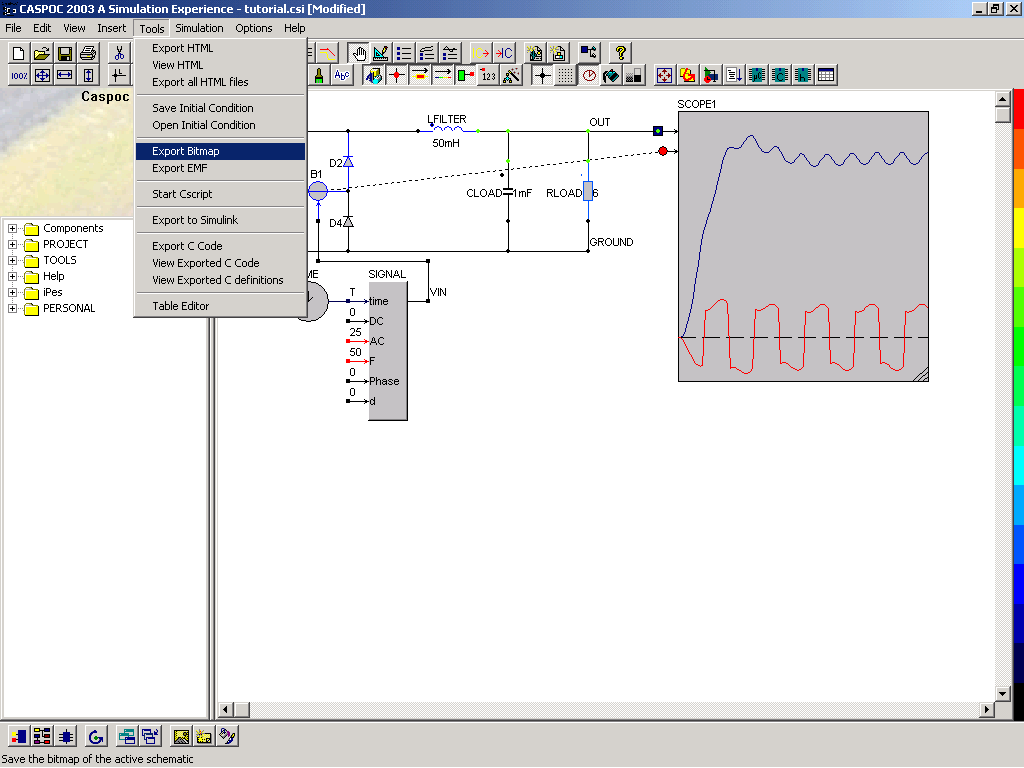

What to do:	Selecting:Tools/Export Bitmappops-up a dialog box where you can enter the name of the exported bitmap graphics file. Select:[Save]to export the graphics file.
Result:	The graphics of the schematic are stored in a bitmap (*.bmp) file on disk.
Note:	Use the extension .bmp for bitmap files.

---
