Editing Labels

 Back to the index
Back to the top of index


Goal:
Assign a unique label to a node.
Include the reference ground label.
Give a numerical value to a node as input for a Block-Diagram component.

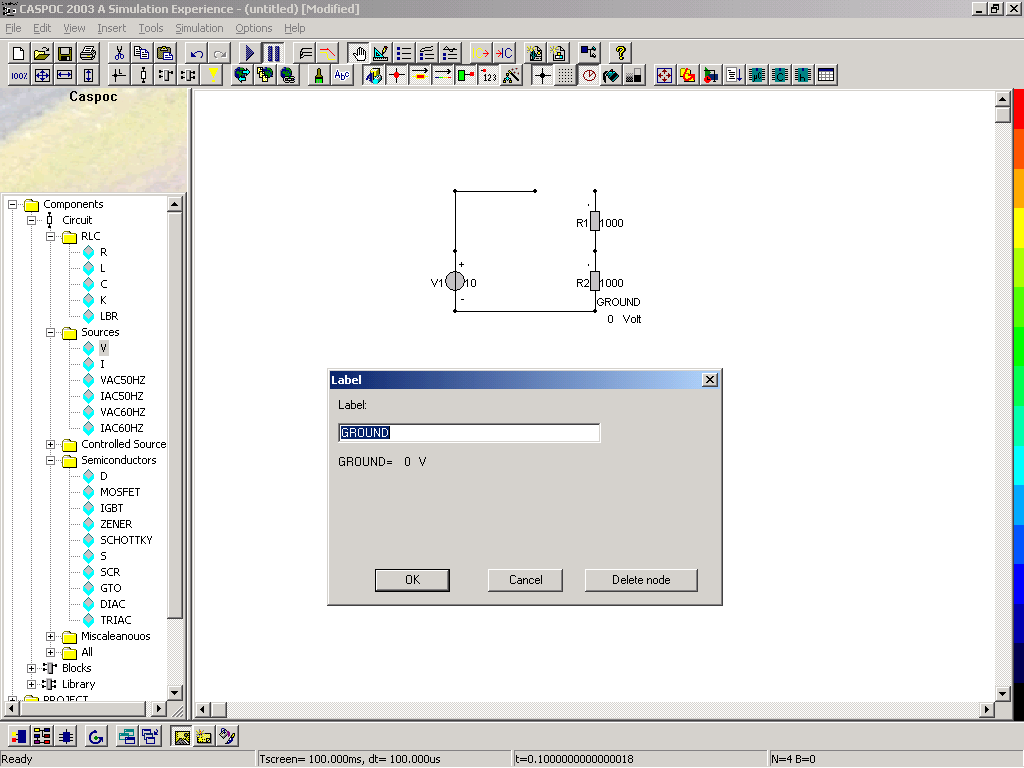

What to do: Click the right mouse button on a node.
Type the name of the label.
Click [OK]
Result:
  • The node has a unique label.
  • A circuit node labeled Ground or 0 is the reference ground node equal to 0 volt.
  • A numerical label in the Block-Diagram is interpreted as a constant numerical value on the input of a Block-Diagram component.

Note:
Be careful not to include a label with only SPACE characters!
The label Ground or 0 has to be present in the circuit model!
