Drawing Wires

Back to the index Back to the top of index

Goal:	Draw a wire between two nodes.

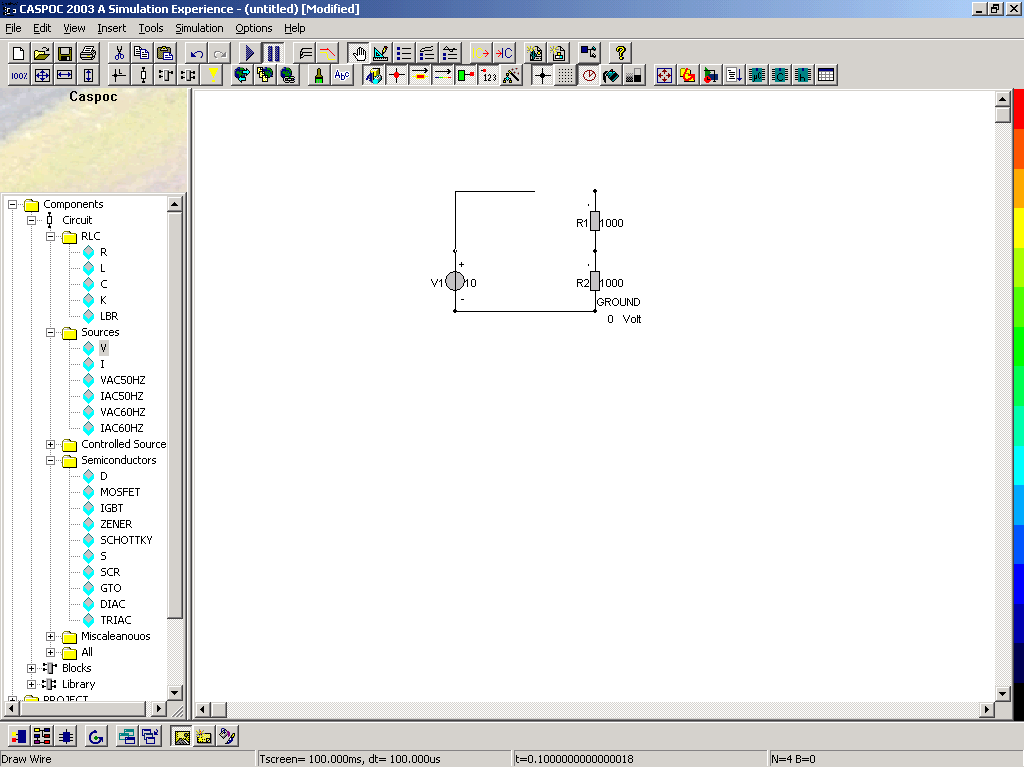

What to do:	Begin of the wireStart the drawing of a wire always on a node by clicking the left mouse button.Draw the wireHold down the left mouse button and move to the end position of the wire.End of the wireReleasing the left mouse button creates the wire.
Result:	A wire with three nodes is drawn. All nodes crossing the wire are connected to the wire. Crossing wires are not connected.

---
