| Parameters for semiconductor models |
Back to the index Back to the top of index |
Goal: |
Include models for the Diode, Zener, Schottky, SCR, GTO, Triac, Diac, Mosfet and IGBT. |

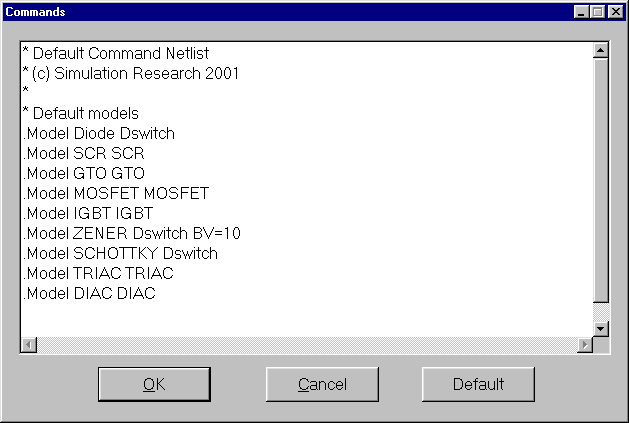

| What to do: | Use the default model: .Model SCR SCR .Model GTO GTO .Model MOSFET MOSFET .Model IGBT IGBT .Model ZENER Dswitch BV=10 .Model SCHOTTKY Dswitch .Model TRIAC TRIAC .Model DIAC DIAC |
| Result: | Inclusion of switch models for the Diode, SCR, GTO, Triac and Diac. |
Note: |
Be sure that at least the default models are defined. |
 |
