| What to do: |

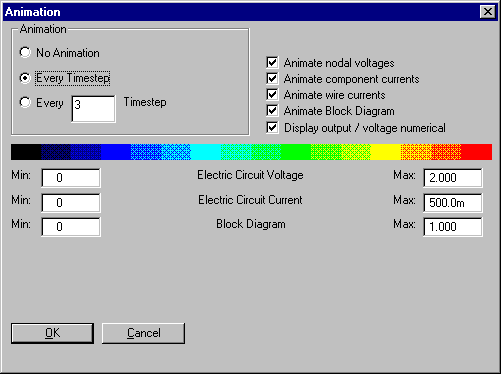

Open the animation properties dialog box by selecting Options/Animation, or clicking with the left mouse button on the rainbow on the left side of the screen.| Animate nodal voltages | The nodes are colored depending on the level of the voltage on a circuit node or the level of the signal on a block diagram node. | | Animate component currents | The components are colored depending on the level of the current through that component. | | Animate wire currents | The wires in the block-diagram are colored depending on the level of the signal. | | Animate block diagram | The inputs and outputs in the block diagram are colored depending on the level of the signal. | | Display output / voltage numerical | The value of the voltage on circuit nodes and the value of the signal in the block diagram are displayed numerical. |
The color during the animation is defined seperately for the electric circuit nodes, current through circuit components and the level of the signal in the block diagram. If the value equals the value specified at [Min], the color is black. If the value equals the value specified at [Max], the color is red. The color is changing from black to red, linearly depending on the value. |
